How to Measure Steam Flow Accurately: 4 Best Meter Technologies Explained


Steam or vapor is one of the most important and powerful tools in modern industry. It is the main way that energy moves in power generation, manufacturing, chemical processing, and HVAC systems. Making steam takes a lot of energy and money, so being able to accurately measure its flow is not just a technical task; it is also an important part of managing energy, keeping costs down, making processes more efficient, and keeping the plant safe. However, measuring steam is notoriously difficult, presenting unique challenges that can cause standard digital flow meters (such as turbine flow meter or magnetic flow meter )to fail.

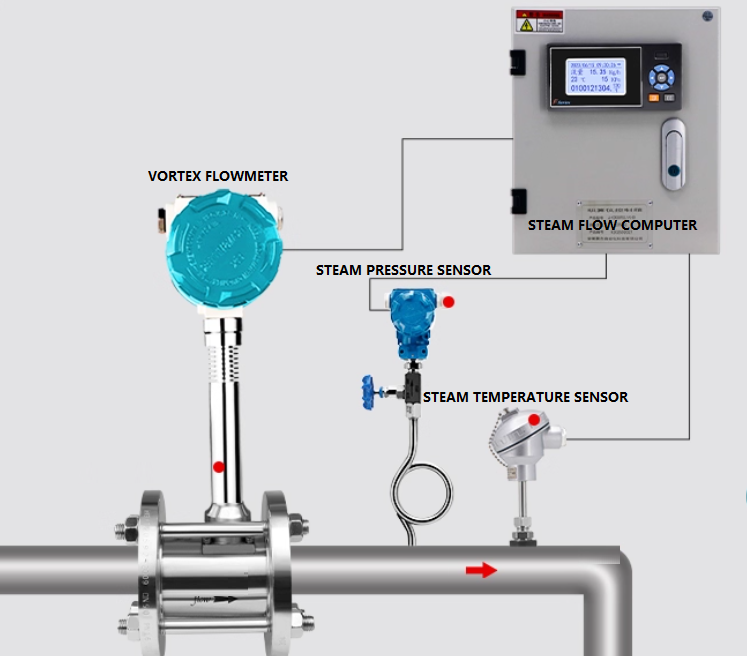

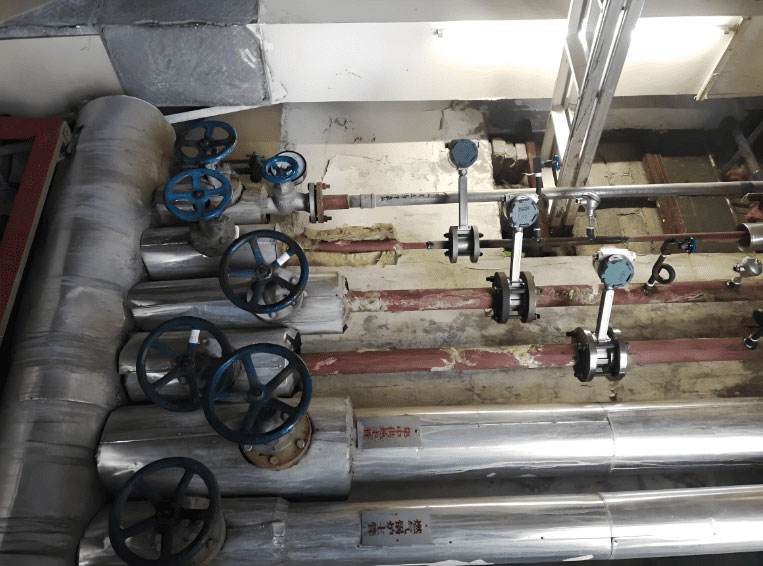

Steam flow measurement is important
Steam flow measurement is important

So, picking the right steam flow meter is very important. If a vapor flow sensor is selected or installed incorrectly or not at all, it can give you wrong data, which can cost you a lot of money and make your business less efficient.

This complete guide will be your go-to source for measuring steam flow. We will talk about the most important problems that come up, go over the best steam flow sensor technologies, and give you a useful way to choose the right steam flow instruments for your needs.

Why is it so important to measure steam flow accurately?

Before getting into the different steam flow measurement technology, it's important to know how important steam measurement is. For the following, accurate and dependable data is very important:

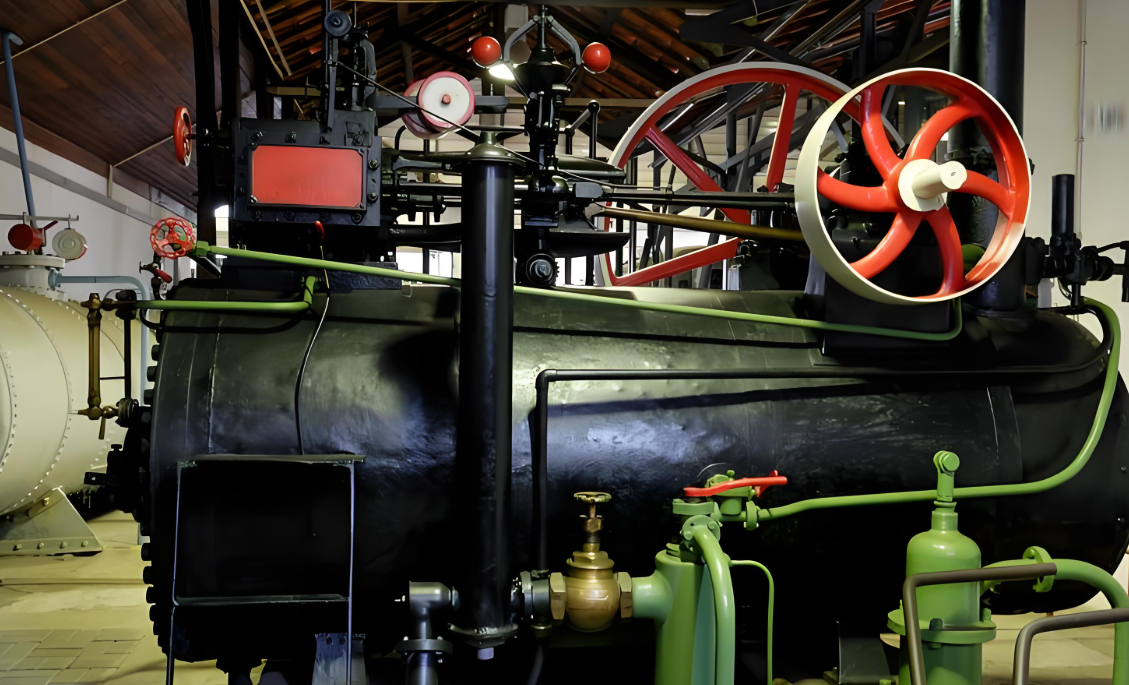

steam boiler needs steam measurement
Steam boiler needs steam flow measurement

Energy Efficiency and Cost Allocation: Burning fuel or using electricity directly makes steam. You can keep track of energy use, assign costs to specific departments or processes, and find areas of waste, like leaks or equipment that isn't working as well as it could, by measuring steam flow accurately.

Process Control: In a lot of cases, the amount of steam delivered is a key factor in making sure that the quality of the product stays the same. It's very important to have precise flow control for heating, sterilization, and running turbines.

Custody Transfer and Billing: When steam is sold from one entity to another (e.g., from a central plant to a tenant), accurate measurement is the basis for fair and transparent billing.

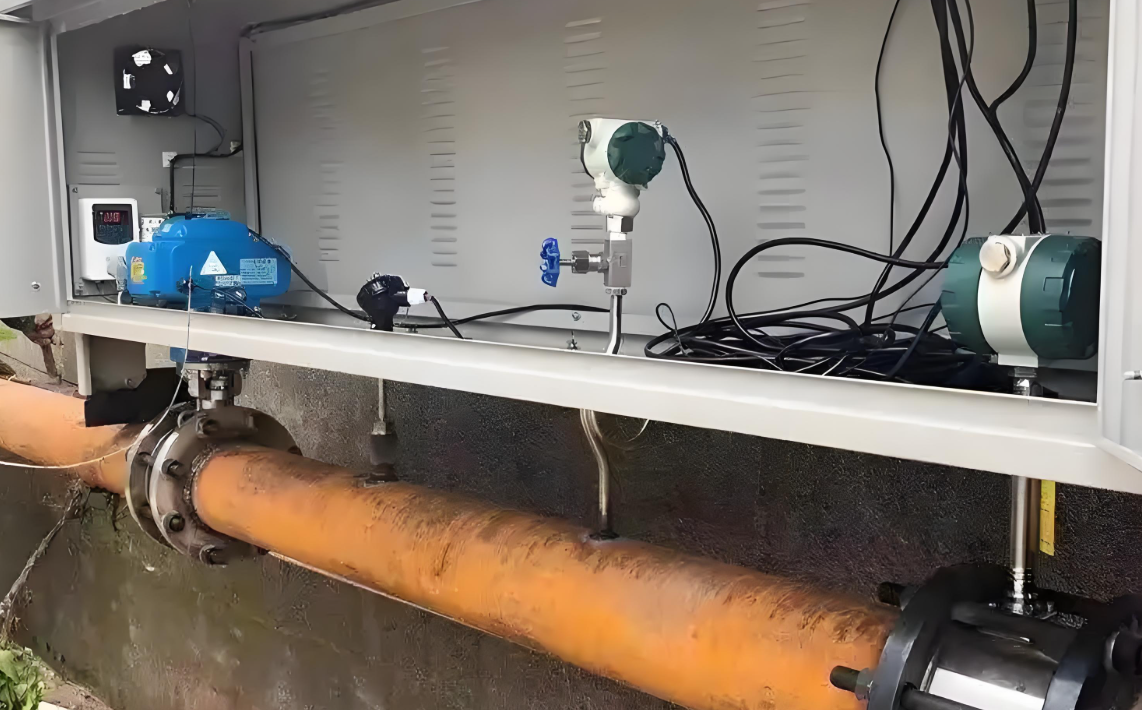

steam custody transfer needs accurate flow measurement
Steam custody transfer needs steam accurate measurement

Boiler Performance and Safety: A boiler's efficiency and health can be measured by how much steam it produces. Flow changes that happen quickly can be a sign of possible safety problems that need to be dealt with right away.

The Special Problems with Measuring Steam Flow

Steam is not just a liquid like water or diesel. Because of its properties, it creates a harsh environment that needs strong, specialized instruments.

high temperature 1. High Temperatures and Pressures: Steam is present at very high temperatures and pressures, which can harm or destroy sensors that aren't made to work in these conditions.The temperature of ordinary saturated steam is usually below 200 °C, whereas superheated steam can exceed 350 °C, and under certain conditions, it may even reach 450 °C or higher, especially at high pressures.

density 2. Changing Density: The biggest problem is that steam's density varies significantly with pressure and temperature. For example, saturated steam at 3 bar has a density of approximately 3.2 kg/m³, while at 10 bar, the density increases to around 8.5 kg/m³. This means that a cubic meter of steam at 3 bar contains much less mass than a cubic meter at 10 bar, which can lead to significant errors if mass flow is not properly measured.
Click here , different density for saturated steam and overheated steam at different temperature and pressure.

steam quality 3. Steam Quality (Wet vs. Dry): There is very little gas in steam in a pipe. It often has water droplets in it, which is called "wet steam." This two-phase flow can cause significant errors in many flow meter technologies.
Free share of steam calculator>>

erosive nature 4. Erosive Nature: High-velocity steam, especially if it is wet, can be highly erosive to any components within the pipe, leading to wear and tear on mechanical meters.Therefore, stainless steel sensor materials are required as the wetted parts of steam flow meters to withstand erosion.

The Core Principle: Why Mass Flow is Essential for Steam

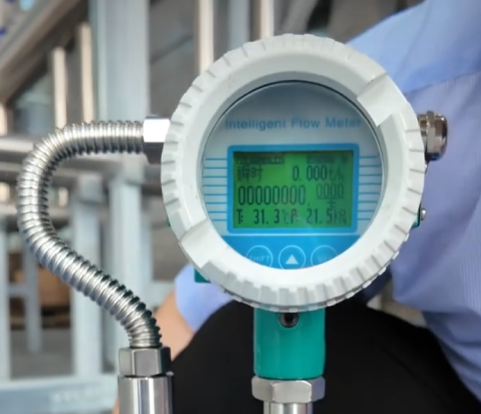

steam flow mass measurement t/h
Steam flow mass measurement (flow unit t/h )

Because steam's density is not constant, measuring its volumetric flow (e.g., in m³/h) is often meaningless without also knowing its exact pressure and temperature at the same point. For this reason, all credible steam measurement is ultimately based on mass flow (e.g., in kg/h, ton/hr or lb/h), as the mass of the steam is a constant, reliable value regardless of its condition. A high-performance [steam mass flow meter] provides the most accurate and direct reading for all steam applications. So most of the vapor flow measurements needs mass flow unit .

A Detailed Guide to Steam Flow Meter Technologies

While there are several ways to approach this high temperature steam measurement challenge, the industry primarily relies on a few proven technologies. A complete overview of the [four ways to measure steam flow] would include various methods, but for practical vapor measurement industrial applications, the following are the most common and reliable steam flow measurement instruments

# 1. Vortex Flow Meters: The Industry Standard

The vortex flow meter has become the most widely used and trusted technology for steam measurement due to its exceptional balance of performance, durability, and very low cost.

Working Principle

A bluff body (or shedder bar) is placed in the flow path. As steam flows past it, it creates alternating vortices (eddies) on either side. A sensor detects the frequency of these vortices, which is directly proportional to the fluid's velocity.

Advantages

No Moving Parts: This is its greatest strength. With nothing to wear, break, or clog, vortex meters are extremely reliable and require minimal maintenance.

Wide Turndown Ratio: They can accurately measure a wide range of flow rates,STLU series vortex flow meter from silverinstruments.com can handle steam flow velocity 3-60 m/s.

High Temperature and Pressure Capability: Their robust, all-welded stainless steel construction makes them inherently suitable for harsh steam environments.

Integrated Temperature and Pressure Compensation: Many models can include built-in temperature and pressure sensors, allowing real-time compensation for steam density changes.

Comprehensive Flow Display: They can directly display steam temperature, pressure, volumetric flow, and mass flow, providing complete process information on-site.

Easy Installation: The design simplifies setup, eliminating the need for multiple auxiliary instruments and reducing installation complexity, insertion vortex flow meter is also available for large steam pipelines over 6 inches. The install for insertion vortex flow meter is also very simple.

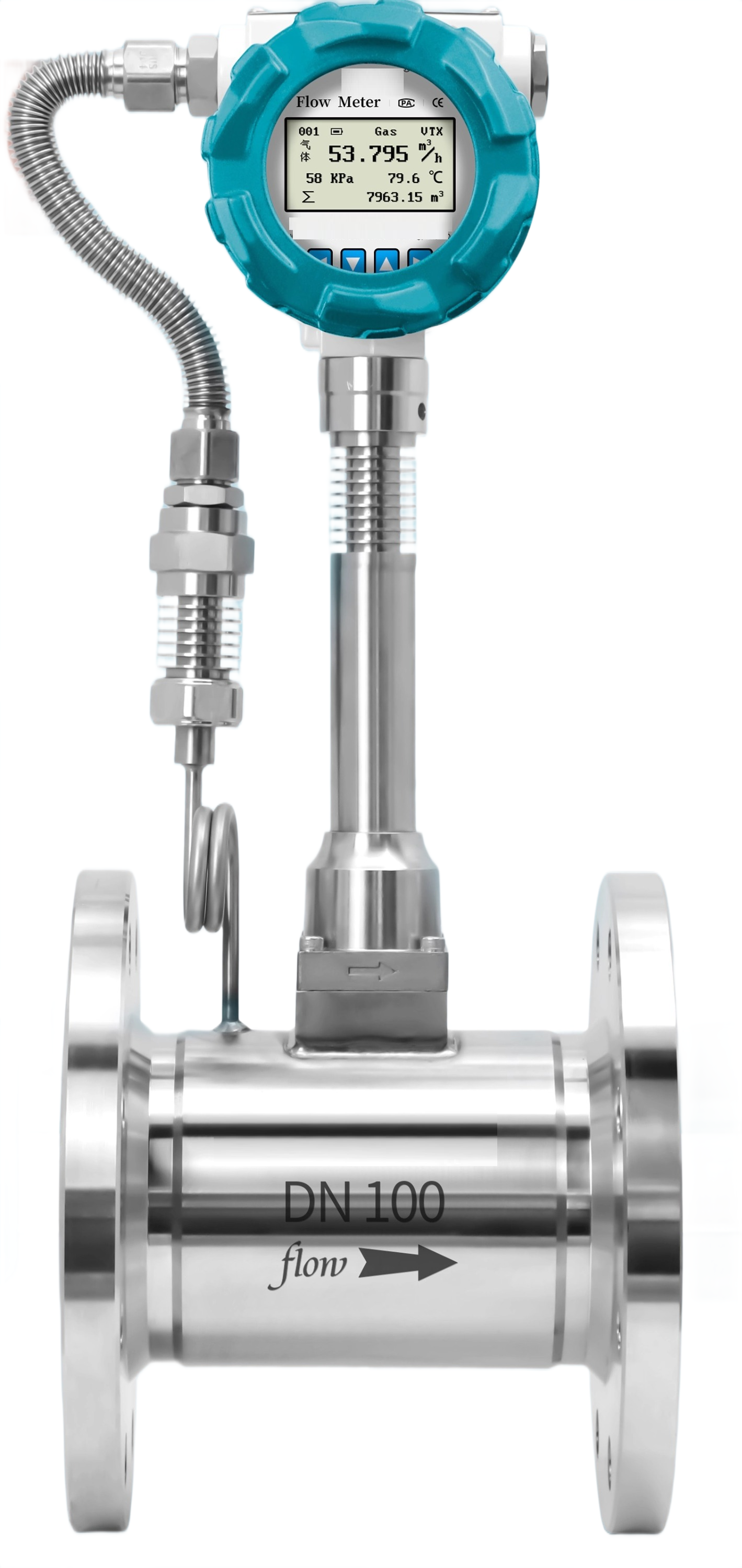

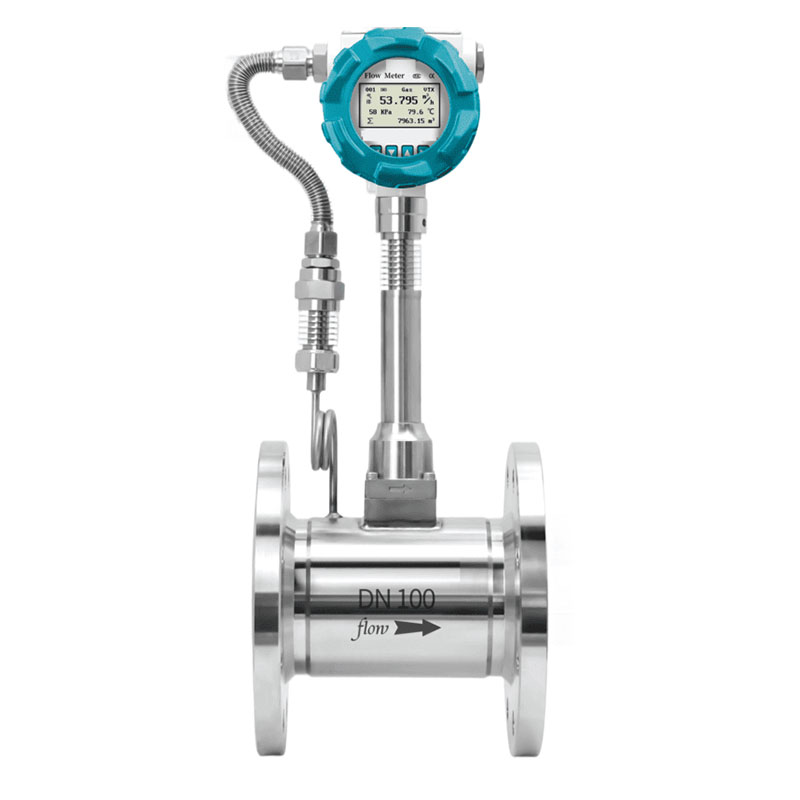

steam vortex flow meter with temperature and pressure correction
Vortex Steam flow meter flow measurement with temperature and pressure compensation

Disadvantages

Requires Straight Pipe Runs: They are sensitive to flow profile disturbances and require a significant length of straight, unobstructed pipe upstream and downstream for accurate readings.
Minimum Flow Rate: They cannot measure very low flow rates, as a minimum velocity is required to generate stable vortices.

Vortex flow meters have many advantages and disadvantages; for more details, please refer to this article: https://www.silverinstruments.com/blog/advantages-and-disadvantages-of-vortex-flowmeter.html.

Vortex Flow Meter Saturated and Overheated Steam Flow Range Reference Guide

We provide a reference table of the STLU series vortex flow meters showing steam flow ranges for different pipe sizes under various pressures and temperatures. The table includes both saturated and superheated steam flow ranges. Although the exact flow ranges may vary slightly between steam flow meter manufacturers, this reference is sufficient to give the general public a good idea of typical steam flow ranges. vortex flow meter saturated and overheated steam flow range

Ideal Applications

For a deeper understanding, explore our detailed guide on the [Vortex steam flow meter]. They are the go-to solution for the vast majority of plant steam and saturated steam applications.

Related video: How to configure vortex flow meter for steam measurement.


# 2. Differential Pressure (DP) Flow Meters: The Traditional Workhorse

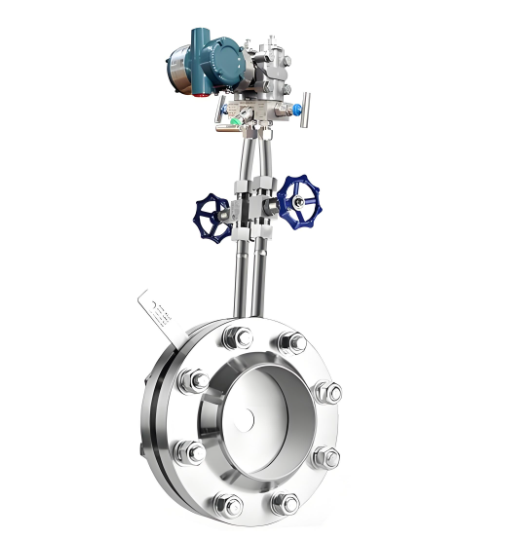

DP flow meter for steam DP flow meter for steam
DP flow meters are the oldest and most traditional method for measuring steam. They work by using a primary element to create a pressure drop that is proportional to the square of the flow rate. Differential pressure flow meters generally require the manufacturer to provide a steam flow calculation sheet; below is an example: a Long Radius Nozzle Flow Meter Calculation Sheet used for steam measurement. used for steam measurement.
DP flow meter calcuation sheet sample

Working Principle

A primary element (such as an orifice plate, venturi tube, or Annubar) is inserted into the pipe to create a constriction. A differential pressure transmitter then measures the pressure before and after the element.

Advantages

Extremely High Temperature Capability: Because the primary element is a simple piece of metal, it can be made from exotic alloys to withstand virtually any temperature, for example overheated vapor temperature may be very high and also the pressure is also very high , and sometimes vortex flow meter can not handle it, some users will use venturi tube flow meter for steam measurement.

Low Cost for Large Pipes: For very large steam lines, the DP approach can be more economical than other technologies.

Disadvantages

Pressure Loss: Orifice plates in particular cause a significant and permanent pressure loss, which translates to wasted energy.

Wear and Tear: The sharp edge of an orifice plate can erode over time in high-velocity steam, leading to a loss of accuracy.

Limited Turndown: They have a much narrower measurement range compared to vortex meters.

# 3. Coriolis Mass Flow Meters: The Ultimate in Accuracy

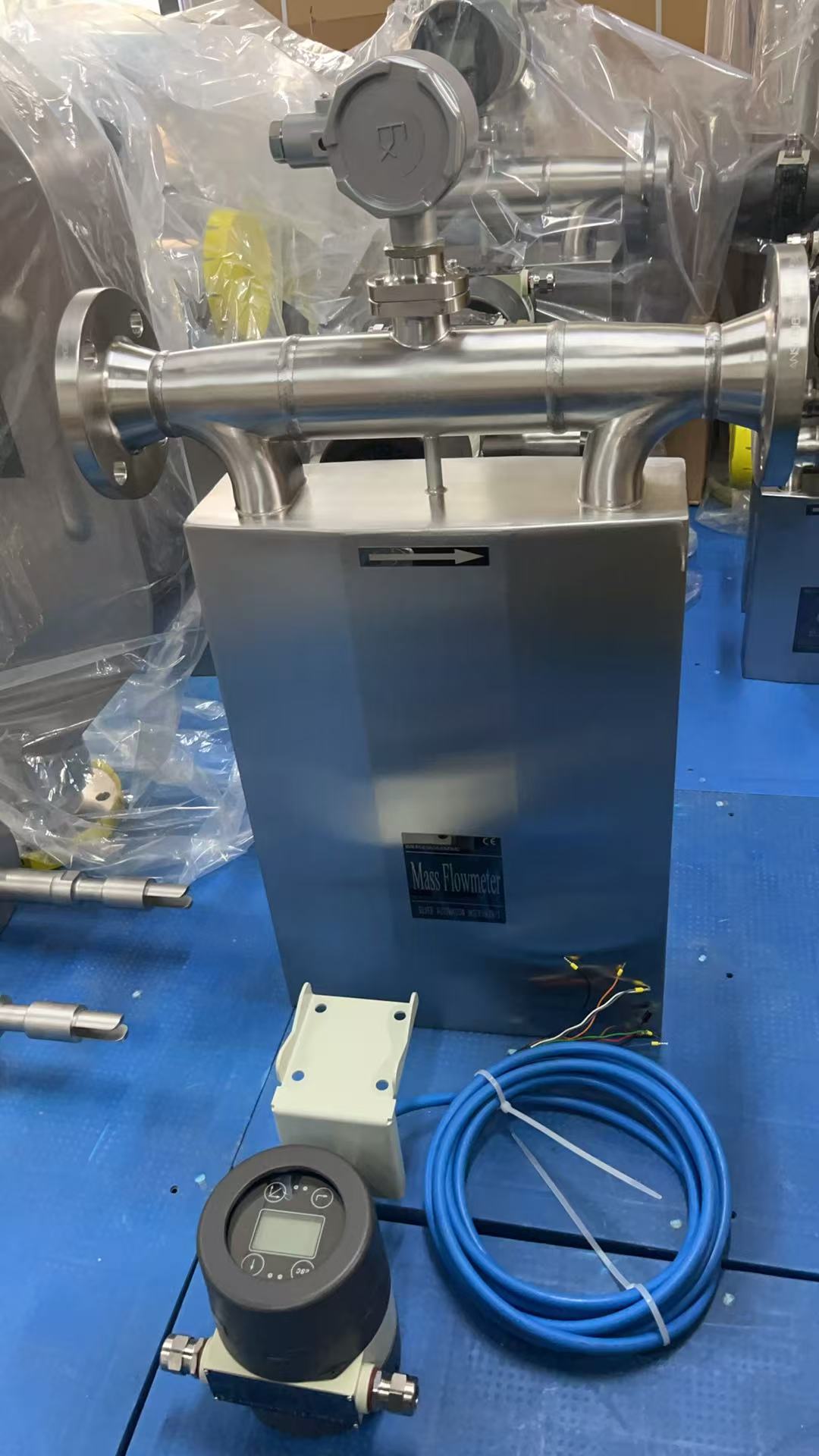

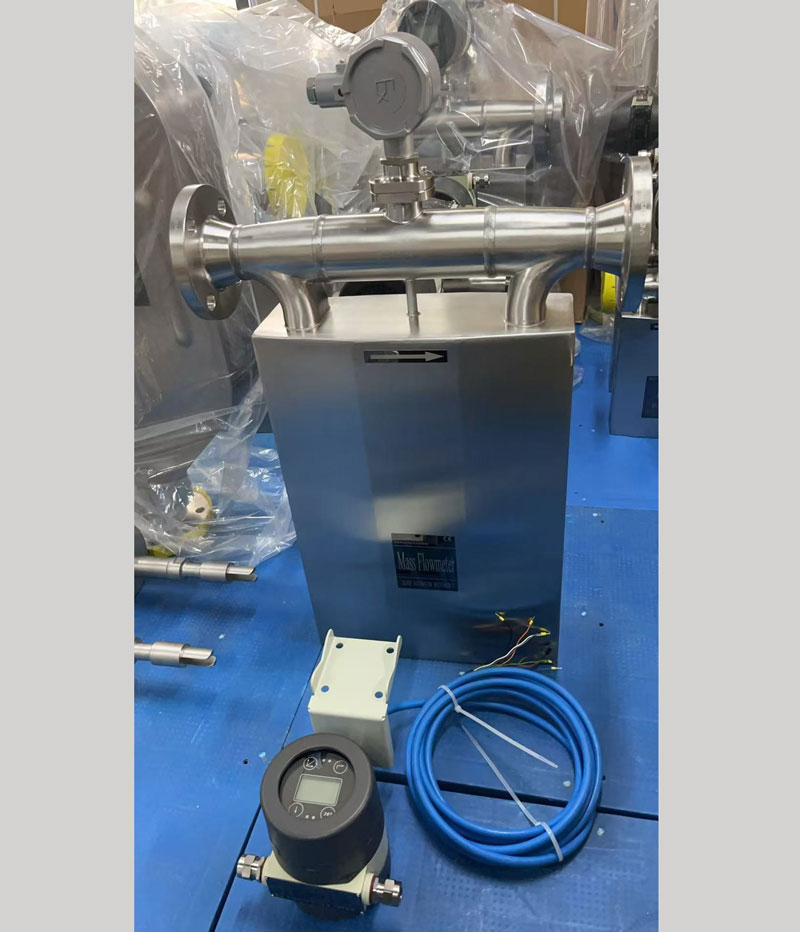

best steam flow meter-CoriolisBest steam flow meter-Coriolis type
For applications demanding the absolute highest accuracy, the Coriolis meter provides a direct measurement of steam mass flow.

Working Principle

The meter uses vibrating tubes that twist due to the Coriolis effect as steam passes through them. The amount of twist is directly proportional to the mass flow rate.

Advantages

Direct Mass Measurement: It measures mass directly, eliminating the need for separate temperature and pressure compensation.

Highest Accuracy: It is the most accurate technology available for steam measurement.

Disadvantages

Very High Cost: Coriolis meters are significantly more expensive than vortex or DP meters.

The price of a mass flow meter ranges from $3,000 to $10,000, depending on the pipe size, temperature, and pressure rating.

Limited Sizing: They are typically limited to smaller line sizes for steam applications due to cost and technical constraints. currently the max size for Coriolis steam flow meter is 12 inches.

Coriolis flow meters also have various advantages and disadvantages. For a detailed overview, you can refer to this article: Advantages and disadvantages of Coriolis mass flowmeter

# 4. Metal Tube Rotameters: The Simple and Durable Choice

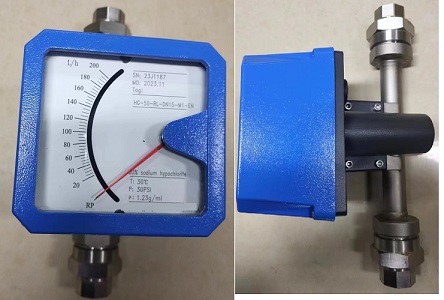

Steam flow measurement by metal tube rotameter Steam flow measurement by metal tube rotameter
Although advanced technologies like vortex, DP, and Coriolis dominate the conversation around steam measurement, the metal tube rotameter (a type of variable area flow meter) still holds a valuable place in industrial steam applications. It offers a rugged and cost-effective solution, especially where simplicity and durability are top priorities.

Working Principle:

A metal tube rotameter consists of a tapered tube with a float inside. As steam flows upward through the tube, it lifts the float. The float reaches an equilibrium point where the upward force of the steam flow equals the weight of the float. The vertical position of the float is then read against a scale, providing a direct indication of flow rate. Unlike glass-tube rotameters, which are limited to low pressures and mild fluids, metal tube rotameters are constructed from stainless steel and other alloys, making them suitable for demanding conditions such as steam service.

Advantages:

Robust Construction: Metal tube rotameters are designed to handle high pressure and temperature, making them suitable for saturated and even some superheated steam applications.

Mechanical Simplicity: They do not require external power, electronics, or complicated installation. This makes them ideal for remote or hazardous environments where maintenance resources are limited.
Local Indication and Remote Transmission: While many rotameters provide direct on-site indication, modern models can also be equipped with magnetic coupling and electronic transmitters to deliver 4–20 mA signals for integration into control systems.

Resistant to Erosion: The all-metal construction and absence of delicate sensors mean they can withstand erosive steam environments better than some traditional mechanical meters.

Cost-Effective: Compared to Coriolis or vortex meters, rotameters are significantly less expensive and often the economical choice for utility-level steam monitoring.

Disadvantages:

Lower Accuracy: Metal tube rotameters typically achieve accuracy in the range of ±1.5% to ±2.5% of full scale, which is lower than vortex or Coriolis meters. They are best suited for monitoring and trending rather than custody transfer or high-precision applications.
Limited Turndown Ratio: The measuring range is narrower than that of vortex meters, meaning they may not capture very low or very high flow variations effectively.
Manual Reading Without Electronics: Basic rotameters require visual inspection. Although electronic transmitters solve this, they add extra cost.

Ideal Applications

Metal tube rotameters are widely used in utility steam lines, boiler feed applications, and process monitoring where approximate readings are sufficient. For instance, a plant may install rotameters to track steam consumption in different departments, ensuring a rough allocation of energy costs without investing in more expensive precision technologies.
For more demanding applications, a metal tube rotameter with a transmitter can provide reliable electronic output while still maintaining the rugged simplicity of the design. This makes it a practical middle ground between traditional mechanical meters and advanced electronic flow measurement systems.

Summary of Steam Flow Meter Technologies

Flow Meter Type Working Principle Advantages Disadvantages Ideal Applications
Vortex Steam flows past a bluff body, creating vortices; frequency measured for flow No moving parts, wide turndown, high T/P capability, built-in temp & pressure compensation, easy installation Needs straight pipe runs, minimum flow rate required Most plant steam, saturated steam
Differential Pressure (DP) Pressure drop across orifice, venturi, or Annubar proportional to flow Handles very high T/P, cost-effective for large pipes,low cost steam meter Pressure loss, wear/erosion, limited turndown Large steam lines, high-temp superheated steam
Coriolis Mass Vibrating tubes twist due to Coriolis effect; twist proportional to mass flow Direct mass measurement, highest accuracy High cost ($3k–$10k), limited size (up to 12") High-precision applications, critical mass flow control
Metal Tube Rotameter Float rises in tapered tube until forces balance; float position indicates flow Rugged, simple, erosion-resistant, local & remote readout, cost-effective Lower accuracy (±1.5–2.5%), limited turndown, manual reading without electronics Utility lines, boiler feed, approximate flow monitoring


How to Select the Right Steam Flow Meter

Making the right choice involves a careful review of your process. A discussion of the main [types of steam flow meters] is the first step.

# Saturated vs. Superheated Steam

It is critical to know the state of your steam. Saturated steam is at its boiling point for a given pressure, while superheated steam has been heated The temperature of saturated steam is generally around 200–250 °C, whereas superheated steam can reach much higher temperatures, typically 350–450 °C or more, often under very high pressure. Measuring the flow of superheated steam is significantly more challenging than measuring saturated steam due to its high temperature, low density, and variable propertiesbeyond its boiling point. Superheated steam is dry (100% gas), making it easier to measure. Saturated steam is often "wet" and requires careful meter placement and sometimes specialized equipment to handle potential condensate.

# The Critical Role of Temperature and Pressure Compensation

As mentioned, the density of steam changes with temperature and pressure. Volumetric meters like Vortex and DP are actually measuring velocity, not mass. To convert their volumetric reading into an accurate mass flow reading, they must be integrated with temperature and pressure sensors. This is accomplished using a flow computer, which takes in the velocity signal from the flow meter and the live data from a dedicated [steam pressure transmitter] and temperature sensor (RTD). The flow computer then performs a real-time calculation to output the compensated mass flow rate.

Related video: How to configure AJ-Series steam flow computer


# Sizing and Installation

Proper sizing is essential for accuracy. The steam sensor must be sized for the expected flow rates at the given operating conditions. For example, a [4-inch steam flow meter] for a main plant line would be selected based on the boiler's maximum output and the line's pressure. Installation is equally important, particularly the requirement for straight pipe runs for Vortex and DP meters to ensure a stable flow profile.

Conclusion: Partnering with the Experts

Choosing the right steam flow meter is a complex but critical task that directly impacts your plant's efficiency and bottom line. While the robust and reliable Vortex meter is the ideal choice for the majority of applications, DP and Coriolis meters offer solutions for more specialized requirements. The key to success is a thorough analysis of your application and an understanding of how to convert volumetric measurements into the accurate mass flow data you truly need.

At Silver Automation Instruments, we specialize in providing complete solutions for steam flow measurement. Our experts can help you select, size, and configure the right technology for your process, ensuring you get reliable and accurate data for years to come.

Frequently Asked Questions (FAQ) about Steam Flow Meters

1. What is the best and most common flow meter for steam?
For the vast majority of industrial applications, the Vortex Flow Meter is the industry standard and best choice for measuring steam. Its robust design with no moving parts makes it highly reliable and low-maintenance, and it offers an excellent balance of performance and cost. That being said, the classic Differential Pressure (DP) flow meter remains a very widely used solution, particularly for challenging high-pressure and high-temperature steam applications that can be difficult to handle.

2. Why can't I use a standard water flow meter for steam?
Steam exists at very high temperatures and pressures that would destroy standard flow meters like magnetic or turbine meters. Furthermore, steam's density changes dramatically with pressure and temperature, which requires the specialized compensation capabilities found in dedicated steam flow meters.

3. Do I need to measure mass flow or volume flow for steam?
You should always measure mass flow (e.g., in kg/h or lb/h). Because steam's density is not constant, a simple volume reading (like m³/h) is often meaningless. A mass flow reading is the only way to accurately track energy consumption and costs.

4. What is temperature and pressure compensation?
Since volumetric meters like Vortex and DP actually measure velocity, they must be paired with separate temperature and pressure sensors to be accurate for steam mass flow. A flow computer uses the data from all three sensors to continuously calculate the steam's density and convert the velocity reading into an accurate mass flow rate.

5. What is the difference between saturated and superheated steam?
Saturated steam is at its boiling point for a given pressure and often contains water droplets ("wet steam"). Superheated steam has been heated beyond its boiling point and is a completely dry gas. Superheated steam is easier to measure, but both types can be handled by the right flow meter.

6. Do steam flow meters require straight pipe runs for installation?
Yes, most of them do. Vortex and Differential Pressure (DP) flow meters are sensitive to flow disturbances and require a significant length of straight, unobstructed pipe (typically 10 diameters upstream and 5 downstream) to ensure accuracy. A Coriolis meter is the only type that does not require straight pipe runs.

7. When should I use a Coriolis flow meter for steam?
A Coriolis flow meter is used for applications that demand the absolute highest level of accuracy (e.g., better than ±1%). It is the best choice for critical process control or high-value custody transfer, but it comes at a significantly higher cost.

8. Can a metal tube rotameter be used for steam?
Yes. A metal tube rotameter is a simple, durable, and cost-effective mechanical meter that can be used for local flow indication in general-purpose utility steam lines where high precision is not the primary requirement.Our company also provides metal tube rotameters equipped with signal outputs and totalization functions, offering a simple and durable option for utility steam monitoring.

9. What happens if my steam is "wet"?
"Wet steam" contains water droplets that can cause measurement inaccuracies and erode meter components. To get the best results, the flow meter should be installed in a vertical pipe with the steam flowing upwards, and condensate traps should be installed before the meter to remove as much liquid as possible.

10. How do I choose the right size for my steam flow meter?
The meter must be sized based on the expected flow rates at the specific operating pressure and temperature of your application. An incorrectly sized meter (either too large or too small) will be inaccurate. It is always best to provide your process data to an instrumentation expert (like silverinstruments.com )to ensure proper sizing.
  • Steam Mass Flow MeterSteam Mass Flow Meter2023/04/06Vortex flow meters to measure steam mass flow rate and have digital display to show steam total mass flow . Built-in temperature and pressure compensation .VIEW
  • Vortex steam flow meterVortex steam flow meter2020/02/01Vortex flow meters are not affected by either temperature or pressure and can provide four process measurements (mass flow, volumetric flow, pressure, temperature ) which are useful in the monitoring and control of steam in a process.VIEW
  • High temperature rotameterHigh temperature rotameter2019/09/16Metal tube Variable Area Flow Meter or rotameter is a kind of antique and reliable gas or liquid measurement instrument. China rotameter flow meter manufacture can design and produce different kinds v...VIEW
  • Coriolis Mass Flow MeterCoriolis Mass Flow Meter2017/04/12Direct mass flow measurement.
    High accuracy: 0.1 %~0.2%.
    Also measure density, temperature, pressure.
    For all fluids measurement.
    VIEW

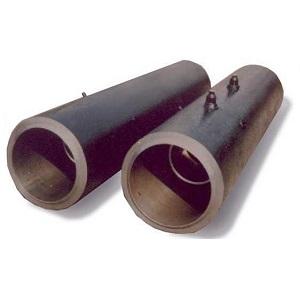

  • Long Radius NozzleLong Radius Nozzle2020/07/10What is long radius nozzle flow meter?Long Radius nozzles flow meters are normally for liquid or gas fluids flow rate including vapor, non-viscous, corrosive and fluids with high speed velocity. A flo...VIEW
