Temperature Transmitters

Temperature transmitters are an electrical transmitter that interfaces a temperature sensor (e.g. thermocouple, RTD) to a measurement or control device.

The signal our transmitter can accept is

• Resistance thermometers (RTD),
• Thermocouples (TC),
• Resistance (Ω),
• Voltage transmitters,

Typically, temperature sensor transmitters isolate, amplify, filter noise, linearize, and convert the input signal from the sensor then send (transmit) a standardized output signal to the control device. Thermocouple transmitter or RTD transmitter output analogue 4-20mA, 2 wire technology.

Features of thermocouple temperature transmitter

• Temperature transmitters Universal settings with HART-protocol for various input signals (Option)
• Transmitter temperature has 2 wire technology, 4 to 20mA analogue output
• High accuracy in total ambient temperature range galvanic isolation (Option)
• An internal temperature sensor for active temperature compensation (For T/C)
• Temperature sensor transmitter has wide voltage supply range
• Expanded resistance input (max 2KΩ)
• Expanded voltage input (max 2KmV)
• SMART Temperature Field Transmitter

We provide head mounted temperature transmitter, temperature indicator transmitter, hart temperature transmitter, the digital temperature transmitter all with analogue 4-20mA output.

Temperature Transmitters Product List

TMT 190B Temperature head Transmitter output 4-20mA	TMT191B Temperature head Transmitter output 4-20Ma/Isolation

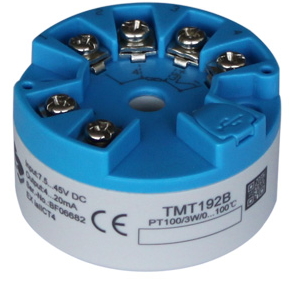

TMT192 HART Temperature head Transmitter Output 4-20Ma/Isolation/Hart	TMT 199 Temperature Indicator Transmitter Output 4-20Ma/Isolation/Hart/Display
DIN Rail mount temperature transmitter TMT132/ 4-20mA/HART	DIN Rail mount temperature transmitter TMT131/ 4-20mA/ Galvanic isolation
