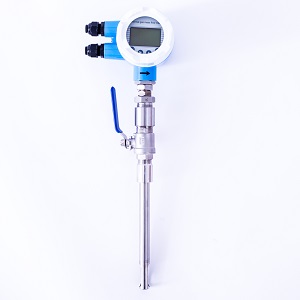

What is an Insertion Probe Flow Meter?
We provide a special type of flow meter called an insertion probe flow meter, which is designed to measure the flow of gas or liquid in large pipelines. This type of flow meter can be used for various industries and is especially useful for measuring conductive liquids or gas flow.
Why Use an Insertion Probe Flow Meter?
The insertion probe flow meter is a new and innovative type of flow meter that has been developed to solve the challenges of installing traditional inline flow meters in large pipelines. These larger pipelines, such as 10”, 12”, and 16” pipelines, can be difficult and expensive to work with. To address this issue, we have developed insertion probe electromagnetic flow meters specifically for large pipelines. The insertion mag flow meter can be installed without needing to cut off the fluid flow, and it can be mounted on cast iron pipes or cement pipes.
Benefits of Using an Insertion Probe mag Flow Meter
The insertion probe
magnetic flow meter has several advantages that make it a valuable tool for various industries. It offers low power consumption, low pressure loss, and has no moving parts, ensuring stable performance. Additionally, it has a simple structure, making it easy to install and maintain. Moreover, measurements are not affected by changes in liquid density, viscosity, temperature, pressure, and conductivity. With a nominal diameter range from 6 inches to DN3000, insertion electromagnetic flow meters are multiple choices for sensor liner and electrode materials. The mag flow converter can be integrated or separated from the insertion flow sensor, and it offers digital display features for showing fluid total flow and flow rate. It also enables bi-directional liquid flow measurement, has multiple outputs, and offers digital communication signal output options such as RS485, RS232, Hart, and Modbus.
Insertion probe Thermal Mass Flow Meter
In addition to the insertion probe flow meter for liquid flow measurement, we also offer an insertion type thermal mass flow meter for gas flow measurement. This type of flow meter is designed based on the principle of thermal diffusion and uses the constant temperature difference method to accurately measure gas flow in large pipelines.
Advantages of Using an Insertion Type Thermal Dispersion Flow Meter
The insertion type
thermal dispersion flow meter offers several advantages. It is easy to install and maintain, has a wide range ratio of 100:1, and does not require additional sensors to realize gas or air mass flow measurement. It provides direct mass flow detection without the need for temperature and pressure compensation. The flow and temperature are detected and displayed simultaneously, and it can be used to detect gas or air low flow for leak detection. Additionally, it can be used as a high-temperature insertion gas flow meter.
Conclusion
In conclusion, the insertion probe mag flow meter and the insertion type thermal dispersion flow meter are highly efficient and reliable tools for measuring the flow of gas and liquid in large pipelines. These insertion flow meters offer accurate measurements, are easy to install and maintain, and provide various features suitable for a wide range of industrial applications.
