Flow meter type: Liquid Turbine Flow meter
Principle: The spinning rotor rotating
speed inside the flow sensor tube is in line with the liquid passing.
Flow meter sensor size available: DN4 to DN100. frequenct request size,1" oil flow meter,2" vegetable oil flow sensor
Process connection: Thread or tri-clamp
Pressure Rating: 10 Bar
Material: 304 SST, 316 SST or 316L SST for hygienic industry
Digital display information: Total oil flow, instant oil flow
Parameters setting method: Through buttons on the display
Power supply: Battery powered or 24V DC power supply
Output: 4-20Ma current , pulse
Communication: RS485 MODBUS,Hart Protocol
Accuracy: 0.5%
Max oil temperature: 150 ℃
Vegetable oil flow range table :
|
Diameter |
Standard Flow (m3/h) |
Extended Flow(m3/h) |
Start Flow (m3/h) |
Max Pressure Loss(Kpa) |
|
|
(mm) |
(in.) |
||||
|
4 |
0.15 |
0.04 to 0.25 |
0.04 to 0.4 |
0.02 |
120 |
|
6 |
0.25 |
0.1 to 0.6 |
0.06 to 0.6 |
0.05 |
80 |
|
10 |
0.4 |
0.2 to 1.2 |
0.15 to 1.5 |
0.07 |
50 |
|
15 |
0.5 |
0.6 to 3.6 |
0.5 to 5 |
0.35 |
35 |
|
20 |
0.75 |
0.8 to 8 |
0.45 to 9 |
0.3 |
35 |
|
25 |
1 |
1 to 10 |
0.5 to 10 |
0.4 |
35 |
|
32 |
1.25 |
1.5 to 15 |
0.8 to 15 |
0.6 |
35 |
|
40 |
1.5 |
2 to 20 |
1 to 20 |
0.6 |
35 |
|
50 |
2 |
4 to 40 |
2 to 40 |
1 |
35 |
|
65 |
2.5 |
7 to 70 |
5 to 70 |
4 |
25 |
|
80 |
3 |
10 to 100 |
7 to 100 |
5 |
25 |
|
100 |
4 |
20 to 200 |
10 to 200 |
8 |
25 |

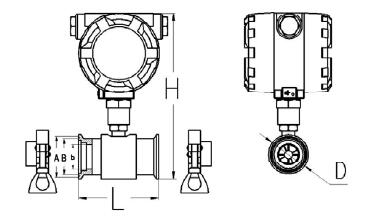

Tri-clamp connection drawings and size
|
SIZE (mm) |
L(mm) |
D(mm) |
A(mm) |
B(mm) |
b(mm) |
H(mm) |
|||
|
N Type |
N Type With Exd |
A Type |
C Type |
||||||
|
4 |
50 |
50.5 |
46 |
40.5 |
4 |
145 |
150 |
150 |
190 |
|
6 |
6 |
145 |
150 |
150 |
190 |
||||
|
10 |
10 |
145 |
150 |
150 |
190 |
||||
|
15 |
100 |
15 |
155 |
160 |
160 |
205 |
|||
|
20 |
20 |
160 |
160 |
160 |
205 |
||||
|
25 |
25 |
160 |
165 |
165 |
210 |
||||
|
32 |
120 |
32 |
165 |
165 |
165 |
210 |
|||
|
40 |
140 |
64 |
59 |
53.5 |
40 |
175 |
180 |
180 |
225 |
|
50 |
150 |
78 |
73.5 |
68 |
50 |
185 |
190 |
190 |
235 |
|
65 |
170 |
91 |
86 |
80.5 |
65 |
205 |
205 |
205 |
250 |
|
80 |
200 |
106 |
100.5 |
94 |
80 |
215 |
220 |
220 |
265 |
|
100 |
220 |
119 |
113 |
106 |
100 |
235 |
240 |
240 |
285 |
More information: The hygienic tri-clamp turbine flow meters have been designed for the dairy, beverage, food processing and pharmaceutical industries. The liquid food applications include milk products, vegetable oils and vinegar for both continuous measurement and batch control. Silver Automation Instruments supply low cost vegetable oil flow meter sensor.
