High pressure Coriolis flow meter 4 inch

Coriolis mass Flowmeter is a flow measurement device that uses the principle of Coriolis force that is proportional to the mass flow when fluid flows in a vibrating pipe to directly measure mass flow. Coriolis flow meter directly measures the mass flow of the medium passing through the flow meter sensor, Coriolis meter can also measure the density of the medium and indirectly measure the temperature of the medium. It has excellent performance, high measurement accuracy, low requirements for fluid conditions and low pressure loss. Coriolis flow sensor can directly obtain the mass flow, volume flow, density and temperature of the liquid, such as slurry, sludge, paper pulp, oil, CNG, LPG,etc.

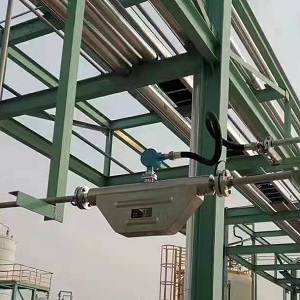

Mass flow meters are currently the most advanced flow meters, which can measure very difficult fluids, such as high viscosity, high pressure, and slurry. The following mass flow meters are our company's applications, the pressure reaches 35MPa (5076 PSI). It is high pressure mass flow meter. The size of the flowmeter is DN100 ( 4 inch mass flow meter), it is slurry flow meter, and the flow range is 0-150 t/h. Coriolis flow transmitter can output 4-20mA and frequency ,also has MODBUS, option with HART protocol.
