We have several types of digital micro flow meters that are made to accurately measure liquid ,gas or steam microfluidic flow with extremely low flow ml/min. Each low flow flow sensor is calibrated in the factory to meet industry standards and has great repeatability, which means that it will give you the same flow measurements over and over again for a long time using. These are the main types:

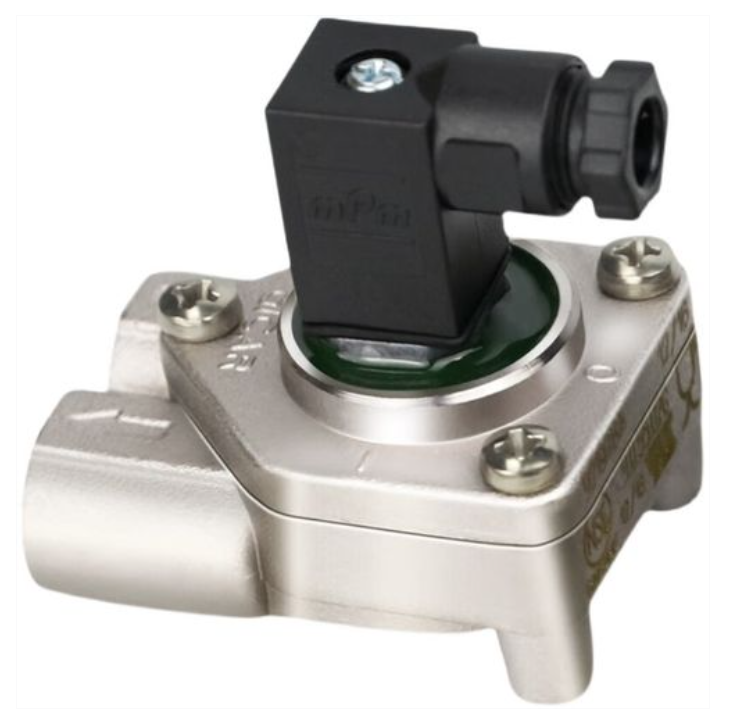

Miniature Liquid Turbine Flow Meter (TUF Flow meter)
Best for measuring flow accurately in situations with low flow rates. These small turbine flow meters work best with pure, non-viscous liquids at flow rates between 35 mL/min and 100 L/min.

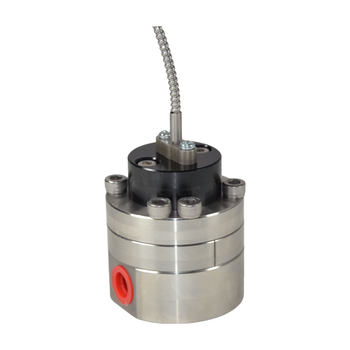

ml/min Oval Gear Flow Meter with a Transmitter Option
Great for measuring small amounts of liquids, like oils, chemicals, and fuel additives. These small PD flow meters are accurate for liquids that flow at speeds between 0.5ml/min and 100 L/min. They work with both thick and thin liquids (such as grease, resin, diesel, mold oil) and are very durable and stable.

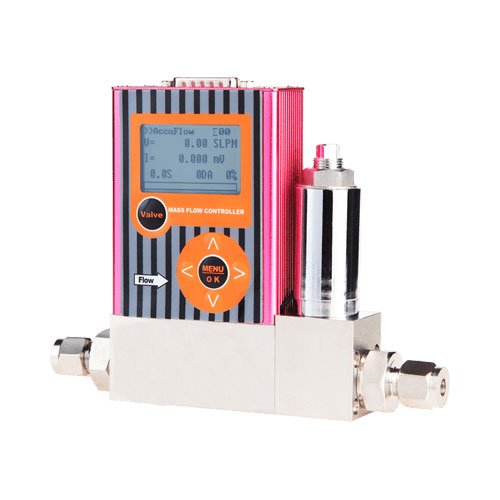

ml/min Thermal Mass Flow Meter
Made just for measuring very low flow rates in gas and air with great accuracy. These flow meters are great for very low flow situations, usually between 1 mL/min (or sccm) and 50 L/min. They are very good for detecting gases like air, nitrogen (N2), and carbon dioxide (CO2), as well as LPG,O2,natural gas whose heat capacity is known.
Industrial ml/min Magnetic Flow Meter
Works with conductive liquids like water, slurries, and other conductive fluids. It gives very accurate readings even when the flow rate is very low. Magnetic flow meters are quite accurate between 300 mL/min and 200 L/min. They are often used to measure the flow of corrosive or abrasive liquids continuously.
Low Flow Variable Area Flow Meter (Rotameter)
A dependable mechanical VA flow meter for low-flow uses in fields like food processing and chemical manufacturing. Rotameters are most suitable for gases and liquids when ease of use and low cost are important, this type flow indicator is only for flow rate measurement, however silverinstruments.com develops advanced rotameter with transmitter, which not only shows total flow ,but also possible with 4-20mA analog outputs. They are usually employed in the range of 28m L/min to 100 L/min.
Low flow Coriolis Mass Flow Meter
This mini mass flow meter is known for being very accurate when it comes to measuring mass flow rates, especially when precise measurements are needed. Ultra-low Coriolis meters are very accurate and can measure between 40 g/min and 1000 kg/h. This makes them perfect for applications that require to take the fluid's density into account.
These miniture flow meters with ml/min or g/min flow measurement units, can be used in several applications : water, grease, ink, painting, acid, liquid chlorine ,NaOH, ingredient, ethanol, Hydro chloric acid , petroleum bunker, fuel consumption, chocolate, paste, VESSEL ENGINE CONSUMPTION, flow meters for the engines and the generators, hardener, adhesives , Kerosene.
Our ml/min (ccm) liquid flow meters are adaptable and can be utilised in numerous applications needing precise flow measurement at low flow range. Some of the most important uses are:
Water Flow Measurement: This is used to keep an eye on low-flow water use in industrial settings and water treatment systems, or can be used in pure water flow.

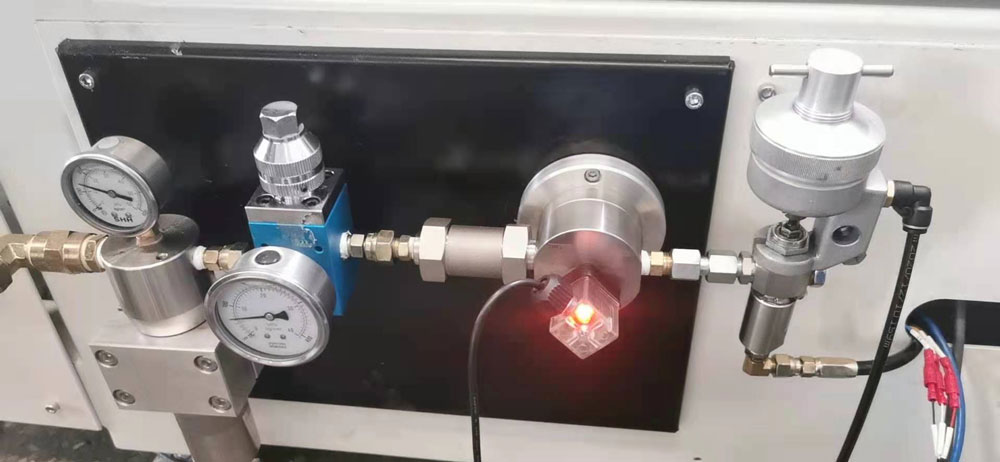

Low flow high viscosity grease measurement
Grease Flow Measurement: This is a common way to measure lubricants and greases in machines and cars, this grease low flow measurement can be related with high pressure or high viscosity lubricants, which is tough for other technology
Ink and Paint Flow: Necessary for systems that dispense ink and mix paint, making sure that the flow is always accurate.

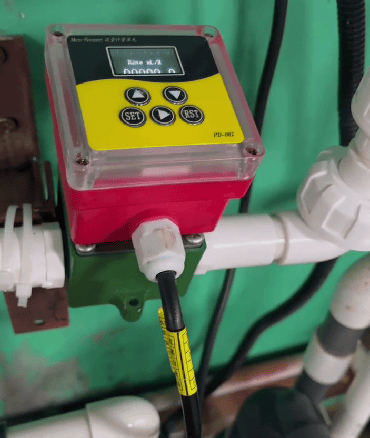

Acid and Corrosive Liquid Flow: This is a good way to measure strong compounds like hydrochloric acid (HCl), sodium hydroxide (NaOH), and liquid chlorine. These chemicals are used a lot in chemical processing.
Food Ingredient Flow: This is used in making food to quantify how thick liquids like chocolate, molasses syrups, or sauces flow.
Fuel Consumption Monitoring: This tool is made to keep track of how much fuel engines, generators, and other systems that use fuel use.
Motor and Generator Fluid Flow: To keep track of how much fluids engines and generators use.

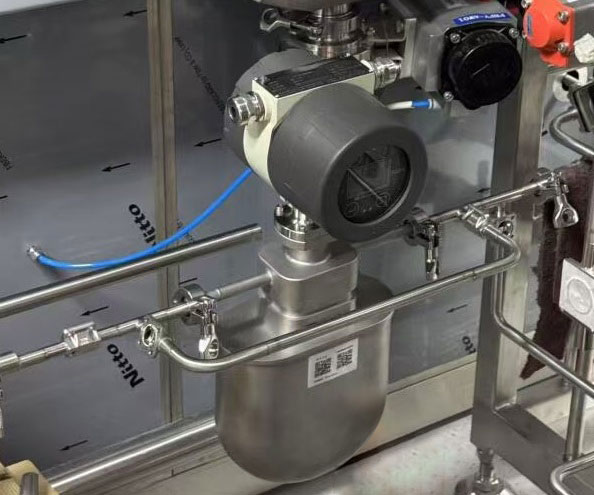

1/4” micro mass flow meter for refrigerant measure
Hardener, Adhesives, Refrigerant r134a,R410A and Kerosene: Good for keeping an eye on the flow of hardeners, adhesives, and kerosene in factories.
We offer a range of materials for the wet sections of our ml/min flow meters to make sure they work with varied fluids and environments:
Our digital liquid flow meters come with a number of output options so that they may easily work with your current systems:
ml/min flow meters are made for situations when you need to measure very low flow rates very accurately, such when you are dosing chemicals, keeping an eye on fuel use, treating low-flow water, and more.
Our ml/min flow meters can measure a lot of different liquids, such as water, fuel, grease, refrigerants, oils, inks, paints, acids, ethanol, fuel additives, and many more. When used with the right materials, they can also be used to measure caustic and thick liquids.
The kind of fluid, the level of accuracy needed, your budget ,and the specific use all play a role in choosing the proper flow meter. If you need to measure low flow rates, positive displacement flow meter, turbine flow meters, and Coriolis mass flow meters are all good choices.
Yes, we also have sccm gas flow meters that can monitor very low levels of gas and air movement, we can even detect 1ml/min low flow flowing. These flow meters are great for use in air filtration, oxygen monitoring, and testing the environment.
The wet parts of our flow meters are constructed of strong materials including stainless steel, polypropylene (PP), and Teflon. These materials last a long time and work with a wide range of liquids and gases.
Our digital compact low flow flow meters have pulse outputs, frequency, 4–20mA current outputs.
For a wide range of uses, our ml/min liquid flow meters are very accurate and dependable. In addition to liquid flow meters, we also offer gas flow meters that can measure flow rates in milliliters per minute (ml/min. These gas flow meters are ideal for applications such as air filtration, medical devices, and environmental testing, where precise gas flow measurement is essential.
You can trust the data from our flow meters, whether you're measuring water, fuels, chemicals, or thick liquids. Pick the best option for your needs today to make sure your most important applications work at their finest.
