How to Change SLW Series Liquid Turbine Flow Meter Flow Unit

2025/05/30

The SLW series liquid turbine flow meter can measure clean and non corrosive low viscosity liquids, such as water, diesel, xylene, vegetable oil, etc.

Silver Automation Instruments has already helped customers set various parameters such as flow range and flow unit when SLW series TUF turbine flow meter leaves the factory. However, customers may encounter some problems during on-site installation, such as wanting to change the flow unit from m3/h to LPH (liter per hour), and so on.

The following is a video guide for customers on how to convert SLW series flow units.

There are mainly two steps involved
1. Change the flow unit.
2. Change the upper limit

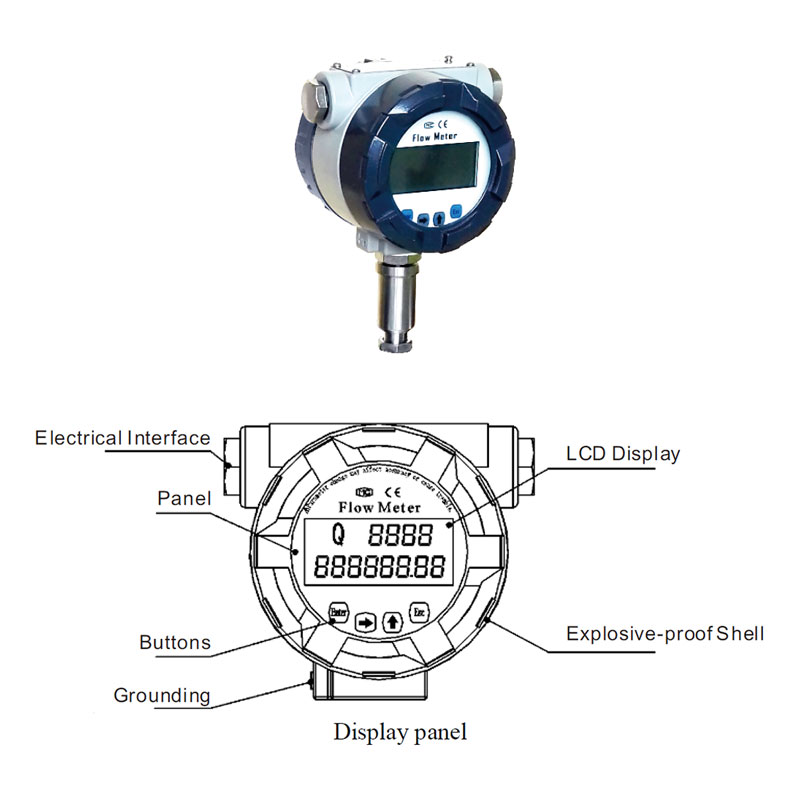

Digital Display Looks of SLW Series Flow Meter

digital display of SLW series flow meter

There are four keys: "Enter"、"→"、"↑"、"Esc".

Keys	Description
Enter	Save the value and advance to next menu
→	For numerical values, move cursor position
↑	To change number unit, setting
Esc	Return to measuring model

Password

Password	Description
1234	Modify Parameters

Description of Menu

Menu	Parameter	Setting	Authority	Description
F-1	Unit	Select	User	Value	Flow Unit	Total Flow Unit
				0	M3/h	M3
				1	L/h	L
				2	L/min	L
				3	US Gal	US Gal
				4	UK Gal/min	UK Gal
				5	US Gal/h	US Gal
				6	UK Gal/min	UK Gal
				7	KG/h	Kg
				8	t/h	T
				9	Ft3/h	Ft3
F-2	Damp time	Input Value	User	Unit: Second Value: 0~99s
F-3	Max flow rate	Input Value	User	Unit: The same to the F-1
F-4	Min flow rate	Input Value	User	When the flow rate lower than min flow rate, the flow rate will display 0; The unit is the same to the F-1

Below is the video to show to you how to change flow unit.
