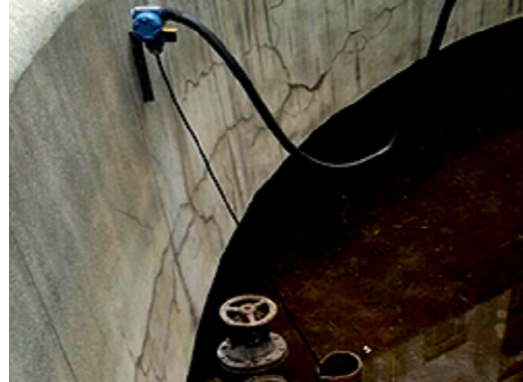

A deep-well level probe provides a reliable and cost-effective solution for hydrostatic level measurement in deep wells, reservoirs, and other water storage systems. Designed to be easily installed, this type of probe is particularly useful for monitoring submersible pumps in deep water wells. The slim design, often with a diameter of just 27 mm, allows it to fit into narrow spaces. The immersion probe typically consists of a robust measuring cell, a two-wire transmitter, and a special cable equipped with a capillary tube to account for atmospheric pressure. Its stainless steel housing ensures durability, while a pressure-sensitive diaphragm is protected by a stainless steel cap. The sensor operates by measuring the pressure exerted by the water column above the probe, and this pressure difference is then converted into an analog 4-20 mA signal via the probe’s ceramic sensing cell and built-in electronics. This method of level measurement is not only accurate but also highly effective for deep-well applications.
Deep Well Level Transmitter Technical Specifications
Silver Automation Instruments offers high-quality deep well level transmitters that utilize diffused silicon or ceramic pressure sensors for precise hydrostatic level measurement. These sensors provide an excellent solution for measuring water levels in deep wells, residential water systems, and other water-holding environments. The sensor can measure hydrostatic pressure, which correlates to the water level, with high accuracy.
These Water level transmitters feature the following technical specifications:
- Measuring Range: 0~1 meter to 0~200 meters, allowing flexible depth measurement for various well sizes and depths.
- Output Signal: The level transmitter in deep wells provides a standard 4-20 mA output signal, which can be easily integrated with monitoring and control systems.
- Accuracy: With an accuracy rating of ±0.25% FS (full scale), submersible level transmitter ensures reliable level measurement in critical applications where precision is necessary.
- Materials: The wetted parts of deep well level probles are made of stainless steel, ensuring resistance to corrosion and long-term durability even in harsh water environments.
- Power Supply: The deep water level transmitter operates on a 24V DC power supply, which is standard for many industrial systems, making it easy to install and maintain.
- Operating Temperature: The residential well water level sensor can operate within a temperature range of -10°C to 80°C, making it suitable for use in various environmental conditions.
- Cable Length: The cable length of flexible cable water level transmitter is customizable and equipped with a capillary tube to ensure accurate atmospheric pressure compensation, which is critical for precise level measurement.
- Ingress Protection: With an IP68 rating, the water well level sensor is fully submersible and protected from water ingress, ensuring it operates reliably in submerged conditions for extended periods.
Silver Automation Instruments’ deep well level transmitter also supports various communication protocols, such as HART or MODBUS RTU, which allows for remote configuration and monitoring. This is particularly beneficial when combined with external radio units for wireless transmission of the measured data, making it easy to access the information without the need for extensive wiring or on-site monitoring.
Silver Automation Instruments: Affordable and Reliable Deep Well Level Transmitters
Silver Automation Instruments offers top-quality deep well level transmitters at competitive prices, ensuring that both residential and industrial customers have access to cost-effective solutions. These transmitters are designed to meet the demands of deep well water level measurement, with high precision, durability, and ease of installation. Whether it's for residential well water level monitoring or industrial applications in water treatment plants, the deep well level transmitter from Silver Automation Instruments provides an excellent balance of affordability and performance.
The company's products are built with high-grade materials like stainless steel, ensuring long-term operation even in harsh environments. Additionally, the transmitters are compatible with submersible pumps, making them ideal for water level monitoring in deep wells where maintaining pump protection is critical. The flexible cable design and customizable length options make them adaptable to wells of different depths, while the robust construction ensures they can handle high pressures and corrosive conditions.
For customers looking for an affordable yet reliable deep well level sensor, Silver Automation Instruments provides a great solution. Their deep well level transmitters are specifically designed to withstand the challenging conditions of deep wells, offering precise and reliable water level measurement at factory prices. This makes them an ideal choice for industries and residential applications looking to ensure water availability and equipment safety without incurring excessive costs.
In summary, using a deep well level transmitter with hydrostatic sensors allows for precise and efficient water level measurement, even in the most demanding environments. With Silver Automation Instruments, you can expect high-quality products at affordable prices, backed by reliable performance in real-world applications.
