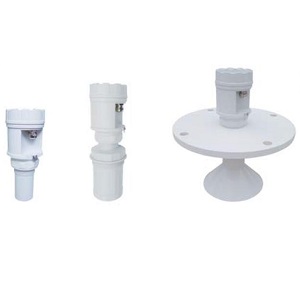

HLTV Series 2-weire ultrasonic level meter

Related Products

Ultrasonic Level Sensor For Tanks

Ultrasonic level sensor is a kind of sensor made from the feature of ultrasound, and ultrasonic level sensor for tanks is one kind of ultrasonic level sensors. ...
26GHz Pulse Radar Level Instrument

SKRD90 series radar level transmitter is designed to be used as non-contact and continuous level measurement instruments of liquids pulps and bulk solids.

Range:HLTV4:0.20~4m HLTV6:0.25~6m HLTV8:0.30~8m
HLTV10:0.40~10m HLTV15:0.60~15m HLTV20:1.20~20m
HLTV30:1.40~30m HLTV40:1.60~40.00m
Accuracy:0.2% Full Span(In air)
Model of indication:4DiBit LCD
Output Current:4-20mA
Output Load:0-500Ω
Parameter Set Up:3 induction buttons
Temperature Ranbe:-40℃~80℃
Temperature Compensasion:The whole range
Pressure Range:±0.1MPa(press denfinitely)is automatic
Power Supply:DC20~32V ≥30mA
Cable Fix:PB13.5
Beam Angle:8°（3db）
Measure Cycle:1 second
Crust Material:AL
Sensor Material:PVC or PTFE
Protevt Brade:IP67
Model Installation:Whorl(B2),Flange
