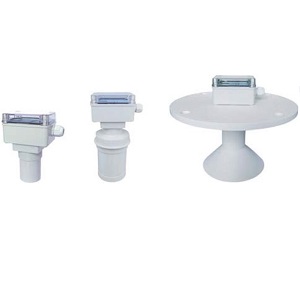

HLTP Series 2-wire ultrasonic level transmitter

Related Products

Utrasonic level sensor with remote indicator

Remote indicator ultrasonic level sensor is suitable for the following situations:① Tanks, silos are too high to observe the fluids level value; remote ultra...
26GHz Pulse Radar Level Instrument

SKRD90 series radar level transmitter is designed to be used as non-contact and continuous level measurement instruments of liquids pulps and bulk solids.

Range: HLTP4:0.20~4m HLTP6:0.25~6m HLTP8:0.30~8m
HLTP10:0.40~10m HLTP15:0.60~15m HLTP20:1.2m~20m
HLTP30:1.40~30m HLTP40:1.6m~40m
Accuracy: 0.2% Full Span(In air)
Model of indication:4 Digital LCD
Output Current:4-20mA
Output Load:0-500Ω
Parameter Set Up:3 induction buttons
Temperature Range:-40℃~80℃
Temperature Compensation: The whole range
Pressure Range:±0.1MPa(press definitely)is automatic
Power Supply:DC20~32V ≥30mA
Cable Fix: PG 13.5
Beam AnBle:8°（3db）
Measure Cycle:1 second
Crust Material: ABS
Sensor Material: PVC or PTFE
Protect Brade: IP67
Model Installation: Whorl(G2),Flange
