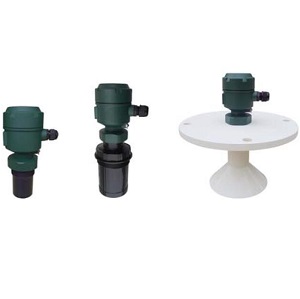

HLNG Series 3-wire ultrasonic level transmitter

Related Products

SKRD31 Series Radar level transmitter

Application: Liquid, bulk solids level measurementMax level range: 30mProcess connection: Screw, flangesProcess temperature: -40~250°CProcess pressure: -0.1~2.0MpaAccuracy: ±3mmRepeatability: 2mmFre...
Ultrasonic Open Channel Flow Meter

Ultrasonic Open Channel Flow Meter
4-20mA & MODBUS-RTU standard
For Weir and flume flow measurement.

Range:HLNG4:0.20~4m HLNG6:0.25~6m HLNG8:0.30~8m
HLNG10:0.40~10m HLNG15:0.60-~15m HLNG20:1.20~20m
HLNG30:1.40~30m HLNG40:1.60-~40m
Accuracy:0.2% Full Span(In air)
Mode of Indication:4 Digit LCD
Output Current:4-20mA
Output Load:0-500Ω
Parameter Set Up:3 indicator buttons
Temperature RanBe:-40℃~80℃
Temperature Compensation:The whole range
Pressure Range:±0.1MPa(press definitely)is automatic
Power Supply:DC20-32v ≥60mA
Cable Fix:PG13.5
Beam Angle:8°（3db）
Measure Cycle:1 second
Crust Material:AL
Sensor Material:PVC or PTFE
Protect Brade:IP67
Mode Installation:Worl(G2),Flange
