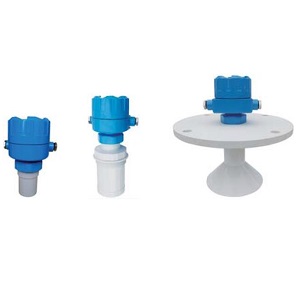

HLNB Series 3-wire ultrasonic level Transmitter

Related Products

Ultrasonic Level Meter

Ultrasonic Level Meter OverviewHL Ultrasonic level meter is non contact liquid level sensor for liquids and solids level measurement. Ultrasonic sensor consists...
6.8GHz Pulse Radar Level Instrument

SKRD50 series radar level transmitter adopts 6.8GHz transmission frequency technology; it is a kind of non-contact and continuous level measurement device. SKRD...

Range:HLNB4:0.20~4m HLNB6:0.25~6m HLNB8:0.30~8m
HLNB10:0.40~10m HLNB15:0.60-~15m HLNB20:1.20~20m
HLNB30:1.40~30m HLNB40:1.60-~40m
Accuracy:0.2% Full Span(In air)
Mode of Indication:4 Digit LCD
Output Current:4-20mA
Output Load:0-500Ω
Parameter Set Up:3 indicator buttons
Temperature RanBe:-40℃~80℃
Temperature Compensation:The whole range
Pressure Range:±0.1MPa(press definitely)is automatic
Power Supply:DC20-32v ≥60mA
Cable Fix: PB13.5
Beam Angle:8°（3db）
Measure Cycle:1 second
Crust Material: AL
Sensor Material: PVC or PTFE
Protect Brade:IP67
Mode Installation: Worl(B2),Flange
