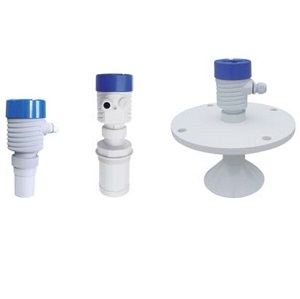

HLTK Series 2-wire ultrasonic level transmitter
Range:HLTK4:0.20~4m HLTK6:0.25~6m HLTK8:0.30~8m
HLTK10:0.40~10m HLTK15:0.60-~15m HLTK20:1.20~20m
HLTK30:1.40~30m HLTK40:1.60-~40m
Accuracy:0.2% Full Span(In air)
Mode of Indication:4 Digital LCD
Ultrasonic level transmitter output current:4-20mA
Output Load:0-500Ω
Parameter Set Up:3 indicator buttons
Temperature RanBe:-40℃~80℃
Temperature Compensation:The whole range
Pressure Range:±0.1MPa(press definitely)is automatic
Power Supply:DC20-32v ≥30mA
Cable Fix:PB13.5
Beam AnBle:8°（3db）
Measure Cycle:1 second
Case Material:AL
Sensor Material:PVC OR PTFE
Ultrasonic level sensor Protect Grade :IP67
Mode Installation:Worl(B2),Flange
