Small flow meter for Corrosive liquid

Related Products

Pressure Transmitter for Corrosive gas or liquid

Pressure Transmitter for Corrosive gas or liquidThe SH308-C series ceramic capacitive pressure transmitters, designed with high-purity alumina ceramics (Al2O3, 99%) as the diaphragm material, are idea...
Anti corrosive mass flow meter

Coriolis flow meters are crucial in the acid-alkali and chemical industries for accurately measuring corrosive liquids. Their benefits include high precision, no moving parts, anti-corrosive material ...

LC-MPN Series Flow meter with wetted parts made of PP or PVDF for corrosive liquid measurement, capable of detecting a minimum flow rate of 13 ml/min.LC-MPN Series Flow meter can be used for sulfuric acid flow meters, hydrochloric acid flow meters, nitric acid flow meters, and hypochlorous acid flow meters

Operating Principle

when the corrosive liquid enters through the inlet of small flow sensor , it flows onto the sensor, generating a signal proportional to the flow rate. The magnetic sensor detects the number of rotations within the chamber and outputs a square wave pulse signal. The mini flow meter for acids features a simple structure, high durability, stable operation in low flow conditions, and excellent repeatability.

Features

Excellent Repeatability
Best for batch control
Different wetted parts of flow sensor material for corrosive liquid
Suitable for low flow chemical and aggressive liquid, it is chemical flow meter

Flow coefficient for low flow flow meter

Model	K factor	Starting flow	Flow range (ml/min)	Remark
LC-MPN-10	6.500	293	750-15000	conventional
LC-MPN-8	4.400	198	500-10000	Non-standard
LC-MPN-7	3.600	162	400-8000	conventional
LC-MPN-6	2.700	122	300-6000	Non-standard
LC-MPN-5	2.400	108	250-5000	conventional
LC-MPN-4	1.80	81	200-4000	Non-standard
LC-MPN-3	1.27	57	150-3000	Non-standard
LC-MPN-2	0.810	36	100-2000	conventional
LC-MPN-1	0.385	17	50-1000	conventional
LC-MPN-0.8	0.288	13	40-800	Non-standard
LC-MPN-0.5	0.250	11	30-600	conventional
LC-MPN-0.4	0.166	7	20-400	Non-standard
LC-MPN-0.3	0.148	7	15-300	conventional

LC-MPN-XX-PP, indicates inlet diameter XX mm, material is PP
LC-MPN-XX-PVDF, indicates the inlet diameter XX mm, the material is PVDF
Pressure resistance: 10BAR
Sealing ring: nitrile rubber/fluorine rubber/PTFE
Connection: G1/2 male thread;
Accuracy: ± 2% of reading
According to the different measured liquid, select the sensor after confirming the corrosion resistance of the main material of the wetted part.

Pressure Loss

Model	2HZ	5HZ	10HZ	20HZ	30HZ	40HZ	K factor
LC-MPN-10	0	0	0	0	0	0	6.500
LC-MPN-8	0	0	0	0	0	0	4.400
LC-MPN-7	0	0	0	0	0	0	3.600
LC-MPN-6	0	0	0	0	0	0	2.700
LC-MPN-5	0.004	0.008	0.02	0.07	0.13	0.22	2.400
LC-MPN-4	0.005	0.009	0.02	0.07	0.16	0.26	1.80
LC-MPN-3	0.006	0.013	0.035	0.11	0.24	0.42	1.27
LC-MPN-2	0.008	0.026	0.080	0.27	0.59	1	0.810
LC-MPN-1	0.01	0.06	0.23	0.75	1.6	2.8	0.385
LC-MPN-0.8	0.02	0.1	0.6	1.6	3.2	5.8	0.288
LC-MPN-0.5	0.05	0.24	0.95	3.6	x	x	0.250
LC-MPN-0.4	0.06	0.35	1.05	4	x	x	0.166
LC-MPN-0.3	0.07	0.4	1.8	6.5	x	x	0.148

Remark: for size above LC-MPN-5, pressure loss is zero

Low flow flow meter Wiring

Low flow flow meter dimensions

Flow meter without display Dimensions

Flow meter with display Dimensions

Application 1: Batch Control with low flow Flow Meters for Tap Water and Upper Water

Low flow flow meters, when used with solenoid valves, PLCs, or batch controllers, enable precise quantitative control of tap water and upper water. The flow meter continuously measures the low flow flow rate, sending data to the controller, which regulates the solenoid valve to ensure accurate water dispensing. Once the preset volume is reached, the system automatically stops the flow, ensuring consistency.
This solution is ideal for industries requiring precise water dosing, such as food production, laboratories, and pharmaceuticals. The compact size and high accuracy of micro flow meters make them suitable for low-flow flow measurement applications, enhancing efficiency and reducing waste.

Application 2: Proportional Infusion of Synovial Fluid with Micro Flow Meters

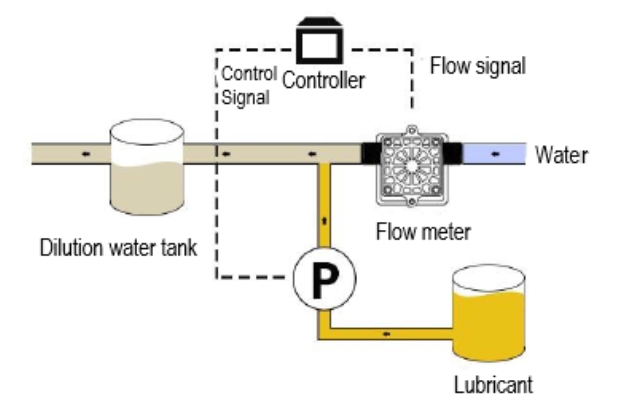

Proportional Infusion of Synovial Fluid with low flow Flow Meters

Small flow meters, combined with pumps and flow controllers, enable precise proportional infusion of synovial fluid by accurately measuring and regulating flow rates. This system ensures the correct dilution of lubricating fluid for production lines, optimizing performance and reducing waste. With high precision and stability, micro flow meters provide consistent fluid mixing, making them ideal for automated lubrication processes in industrial applications.
