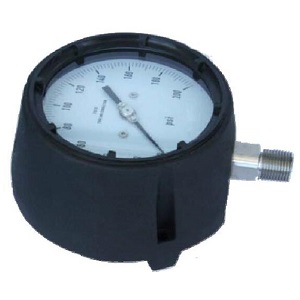

Safety Resin phenolic pressure gauge with solid baffle wall designed
Excellent load-cycle stability and shock resistance

PHENOL CASE PRESSURE GAUGE Technical Specifications

Nominal Size: 41/2”
Pressure Range: 0…0.6bar to 0…1000bar (0..10psi to 0…15000psi)
Fluids Medium:+100 °C maximum
Temperature Requirement:
Ambient:-40…+65 °C without liquid filling
-20……+65°C gauges with glycerin filling
Process Connection: Stainless steel 316L,Thread 1/4”,1/2”.PT,BSP,NPT options
Movement: Stainless steel
Dial:Aluminum, white, black lettering
Pointer:Adjustable pointer, aluminum, black
Case:PBTP, black ,with solid baffle wall (strengthened polyamide option)
Solid front safety pattern case with integral baffle wall and blow-out back.
Integral surface mounting flange
Window:Clear non-splintering plastic(PMMA),retained by internal threaded bezel.
