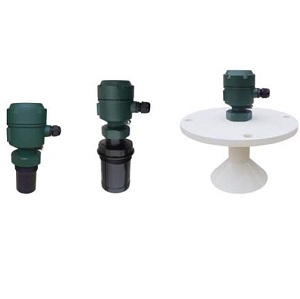

HlTG Series 2-wire ultrasonic level meter

HlTG Series 2-wire ultrasonic level meter

Related Products

  • Utrasonic level sensor with remote indicator

    Utrasonic level sensor with remote indicator

    Remote indicator ultrasonic level sensor is suitable for the following situations: ① Tanks, silos are too high to observe the fluids level value; remote ultrasonic level indicator can be installed at lower place which is easy to read the level. ② Da

  • SKRD32 Series Radar level transmitter

    SKRD32 Series Radar level transmitter

    Application: Liquids level measurementMax. range: 6mProcess connection: Screw, flangesProcess temperature: -40~250°CProcess pressure: -0.1~4.0MpaAccuracy: ±3mmRepeatability: ±2mmFrequency range: 10...

Range:HLTG4:0.20~4m  HLTG6:0.25~6m  HLTG8:0.30~8m
HLTG10:0.40~10m  HLTG15:0.60-~15m  HLTG20:1.20~20m
HLTG30:1.40~30m  HLTG40:1.60-~40m
Accuracy: 0.2% Full Span(In air)
Mode of Indication:4 Digit LCD
Output Current:4-20mA
Output Load:0-500Ω
Parameter Set Up:3 indicator buttons
Temperature Range:-40℃~80℃
Temperature Compensation: The whole range
Pressure Range:±0.1MPa(press definitely)is automatic
Power Supply:DC20-32v  ≥30mA
Cable Fix: PG13.5
Beam Angle:8°(3db)
Measure Cycle:1 second
Crust Material: AL
Sensor Material: PVC OR PTFE
Protect Grade:IP67
Mode Installation: Worl(G2),Flange
