What Are Liquid Argon and Gas Argon?
Argon, a noble gas, is used in various industrial applications in both its liquid and gas forms.
- Liquid Argon: Argon becomes liquid at extremely low temperatures, typically around -186°C (87 Kelvin). It is primarily used in cryogenics, welding, metal production, and as a protective gas in industrial processes.
- Gas Argon: In its gaseous state, argon is widely used as an inert shielding gas in welding and cutting processes, as well as in the production of semiconductors, light bulbs, and for certain types of spectroscopy.
Both forms of argon present unique challenges for accurate flow measurement due to their physical properties and operating conditions.
Challenges and Pain Points in Measuring Liquid and Gas Argon Flow
-
1. Extremely Low Temperatures for Liquid Argon
-
Liquid argon operates at very low temperatures, typically at or below -186°C. At these temperatures, conventional flow meters may not function properly, especially when sensitive components like seals, sensors, and electronics are exposed to freezing temperatures. Special materials and design considerations are required to ensure reliable operation. Cryogenic flowmeter is needed.
-
2. Wide Temperature Range for Gas Argon
-
Gas argon can vary in temperature from extremely cold conditions to room temperature or even higher. This wide range introduces challenges related to thermal expansion and contraction, which can affect sensor calibration and the accuracy of flow readings. Additionally, the behavior of gas flow is more sensitive to temperature fluctuations than liquid flow, making accurate measurements more difficult.
-
3. Density and Viscosity Variations
-
Argon is a low-density gas and has a significantly different density when in liquid form. The density of liquid argon can vary with temperature, making flow measurements particularly challenging. Similarly, the viscosity of both liquid and gas argon can vary with temperature and pressure, affecting the flow rate and the sensor's ability to measure accurately.
-
4. Pressure and Flow Rate Variations
-
Both liquid and gas argon are typically transported under different pressure conditions. The pressure can fluctuate significantly in industrial processes, which can affect the flow characteristics. This variability in pressure must be accounted for in the measurement system to ensure consistent accuracy.
Why Coriolis Mass Flow Meters are Ideal for Measuring Liquid and Gas Argon Flow
Coriolis Flow Meter Principle
Coriolis mass flow meters work by detecting the Coriolis effect, which occurs when a fluid flows through a vibrating tube. As the fluid passes through the tube, it causes a shift in the phase of the vibration, which can be measured to determine the mass flow rate. This method is different from traditional volumetric flow meters, which rely on the fluid's density and velocity. By directly measuring the mass flow, Coriolis meters offer greater accuracy, especially when the fluid's density or temperature changes.
Why Coriolis Flow Meters are Suitable for Liquid and Gas Argon
1. Mass Flow Measurement
Coriolis flow meters measure mass flow directly, making them ideal for gases and liquids that experience significant density changes with temperature and pressure, such as liquid and gas argon. Since the mass flow is independent of density, Coriolis meters maintain their accuracy even with fluctuating conditions.
2. Wide Temperature Range
Coriolis flow meters can operate in extreme temperature environments, from cryogenic temperatures as low as -200°C up to 150°C or higher. This makes them perfect for measuring both liquid argon at cryogenic temperatures and gaseous argon at a range of temperatures.
3. High Precision and Reliability
The design of Coriolis flow meters allows for high-precision measurements with an accuracy of up to 0.1%. This is particularly important in applications where even small variations in flow rate can affect the process, such as in cryogenic systems and industrial gas processing.
4. Explosion-Proof and Safe for Hazardous Environments
Coriolis flow meters can be equipped with ATEX explosion-proof certifications, making them safe for use in environments where there may be flammable gases or liquids. This is especially crucial in industrial settings where argon is used as part of processes that may involve volatile or hazardous conditions.
Case Study: Coriolis Mass Flow Meters for Liquid and Gas Argon

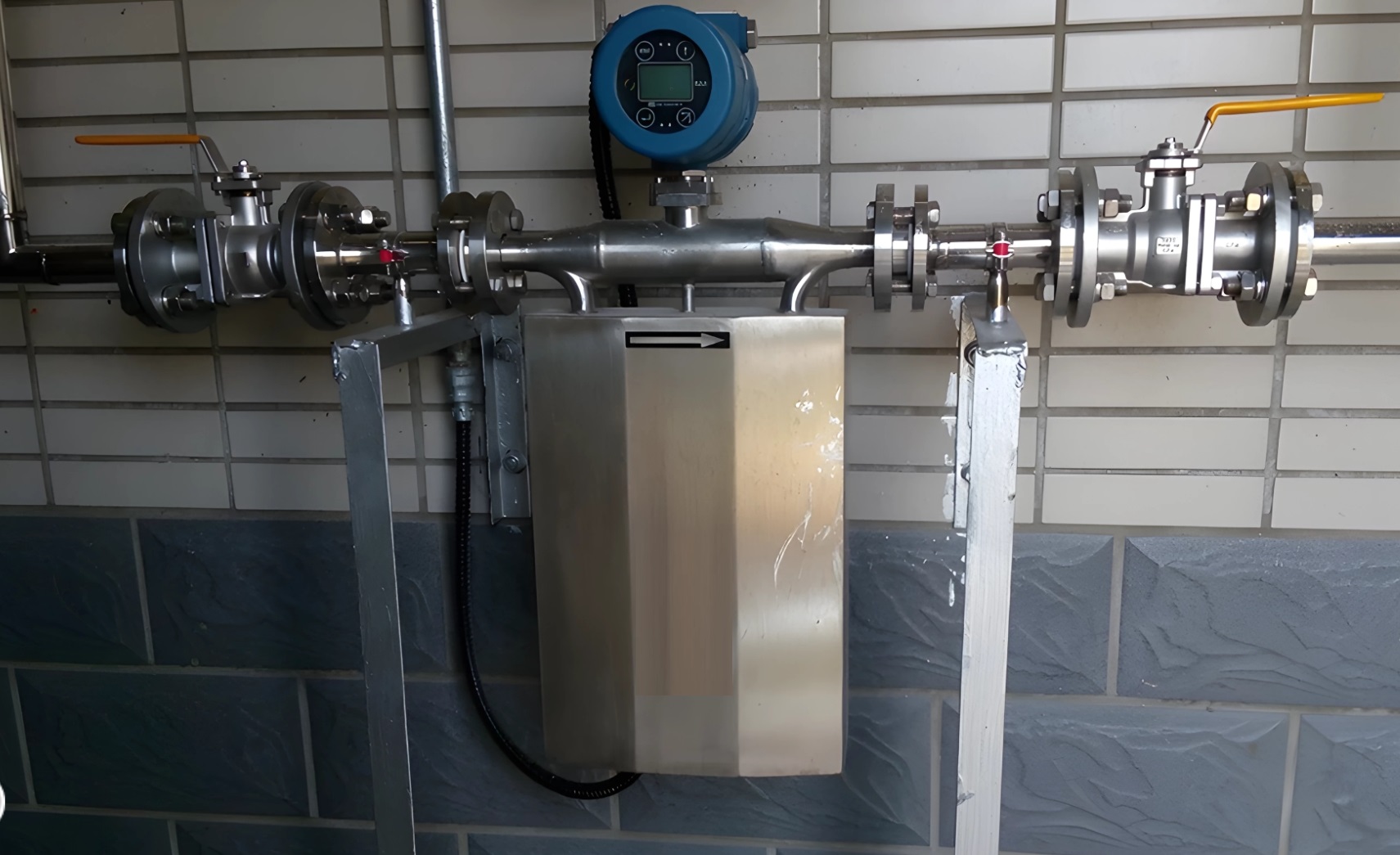

For example, the SH-CMF series
Coriolis flow meter is designed to measure liquid argon flow in industrial applications. It features a flow range of 0-3.0T/h,0-7 t/h,0-20 t/h and so on, a temperature range of -200°C to +150°C, and an accuracy of 0.2%. It also includes ATEX explosion-proof certification for hazardous area, making it ideal for handling cryogenic liquid argon in hazardous environments.
For gaseous argon, the DN20 Coriolis flow meter can measure up to 120,000 liters per hour, offering a precise solution for applications requiring the measurement of gas argon over a wide temperature range from -185°C to +20°C. This type of meter ensures accurate mass flow measurement for gas argon even when the pressure and temperature fluctuate during industrial operations.
Conclusion
Measuring the flow of liquid and gas argon presents numerous challenges, including extreme temperatures, density and viscosity variations, and the need for high-precision instruments. Coriolis mass flow meters, with their ability to directly measure mass flow regardless of density changes, provide a reliable and accurate solution for both liquid and gas argon applications. Their high temperature tolerance, precision, and safety features make them ideal for use in cryogenic and industrial environments, ensuring accurate process control and optimization in industries such as welding, cryogenics, and semiconductor manufacturing.
